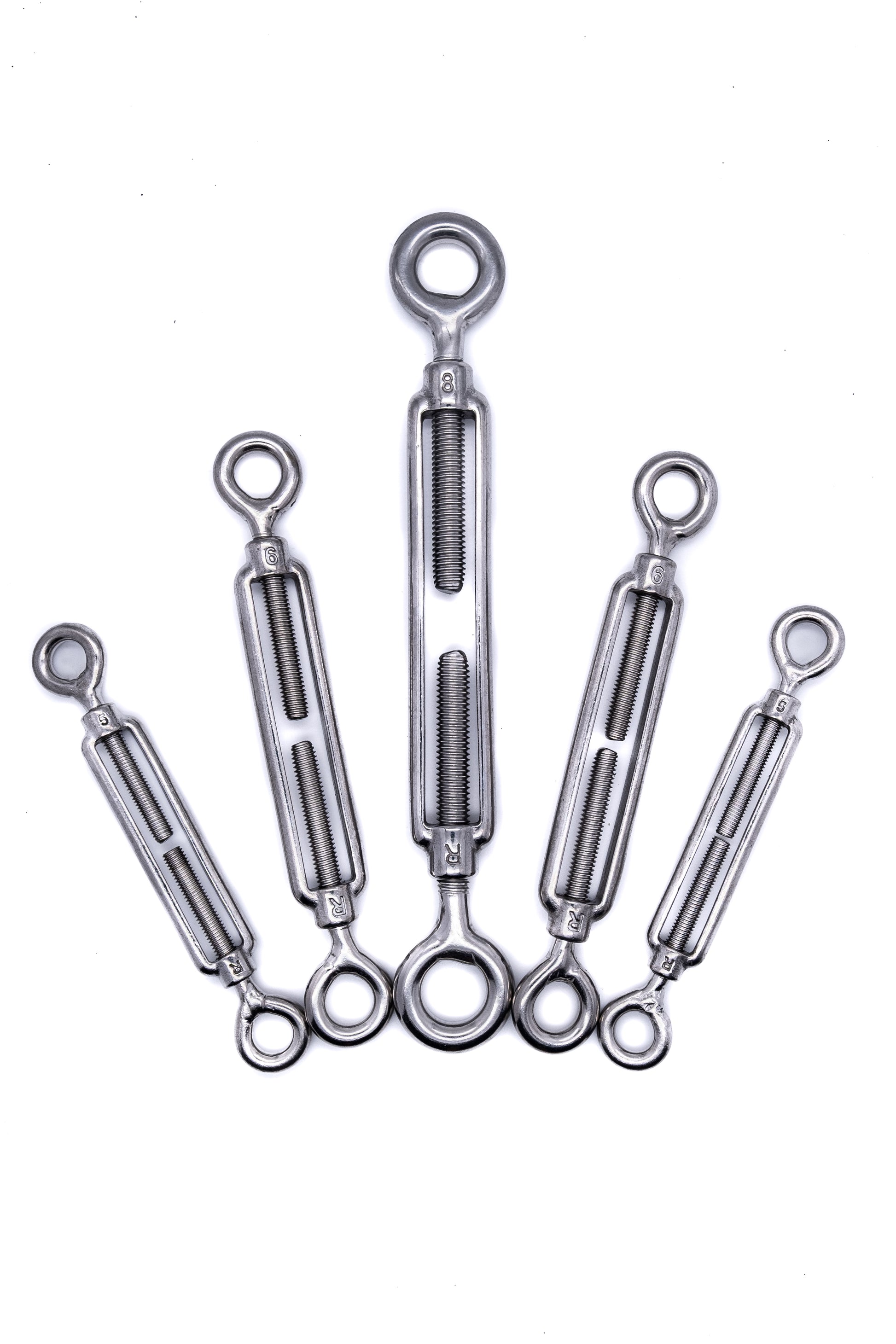

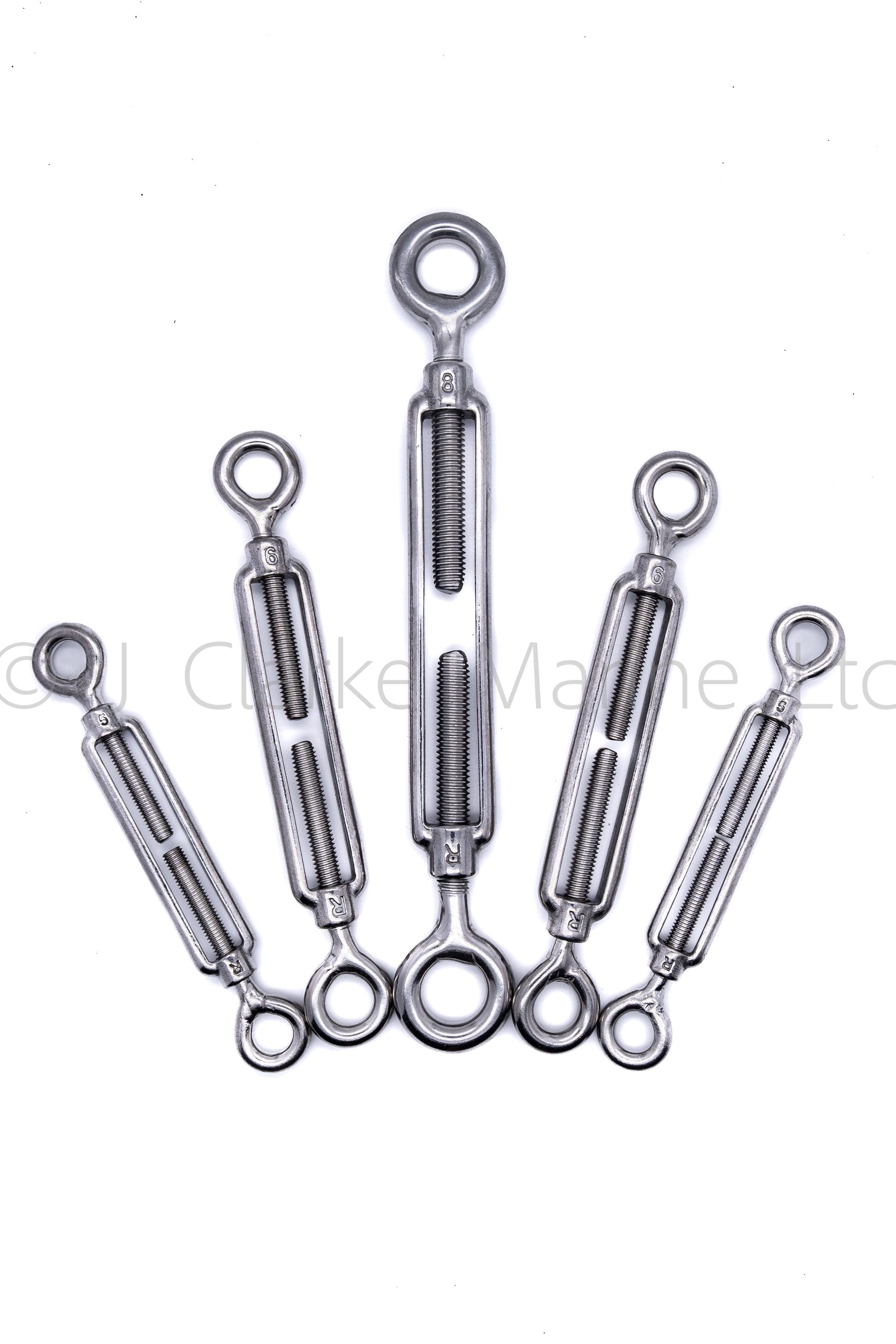

Stainless steel turnbuckle rigging screw eye to eye 316 A4 marine grade

Made from 316 A4 marine grade stainless steel, our eye to eye turnbuckles can withstand the harshest conditions. These rigging screws are ideal for tightening wire rope between two points

Example of the drop boxes above
If you choose "M5" and "Pack of 10" you will receive

• 10pcs of M5 eye to eye turnbuckles

See other photos for diagram

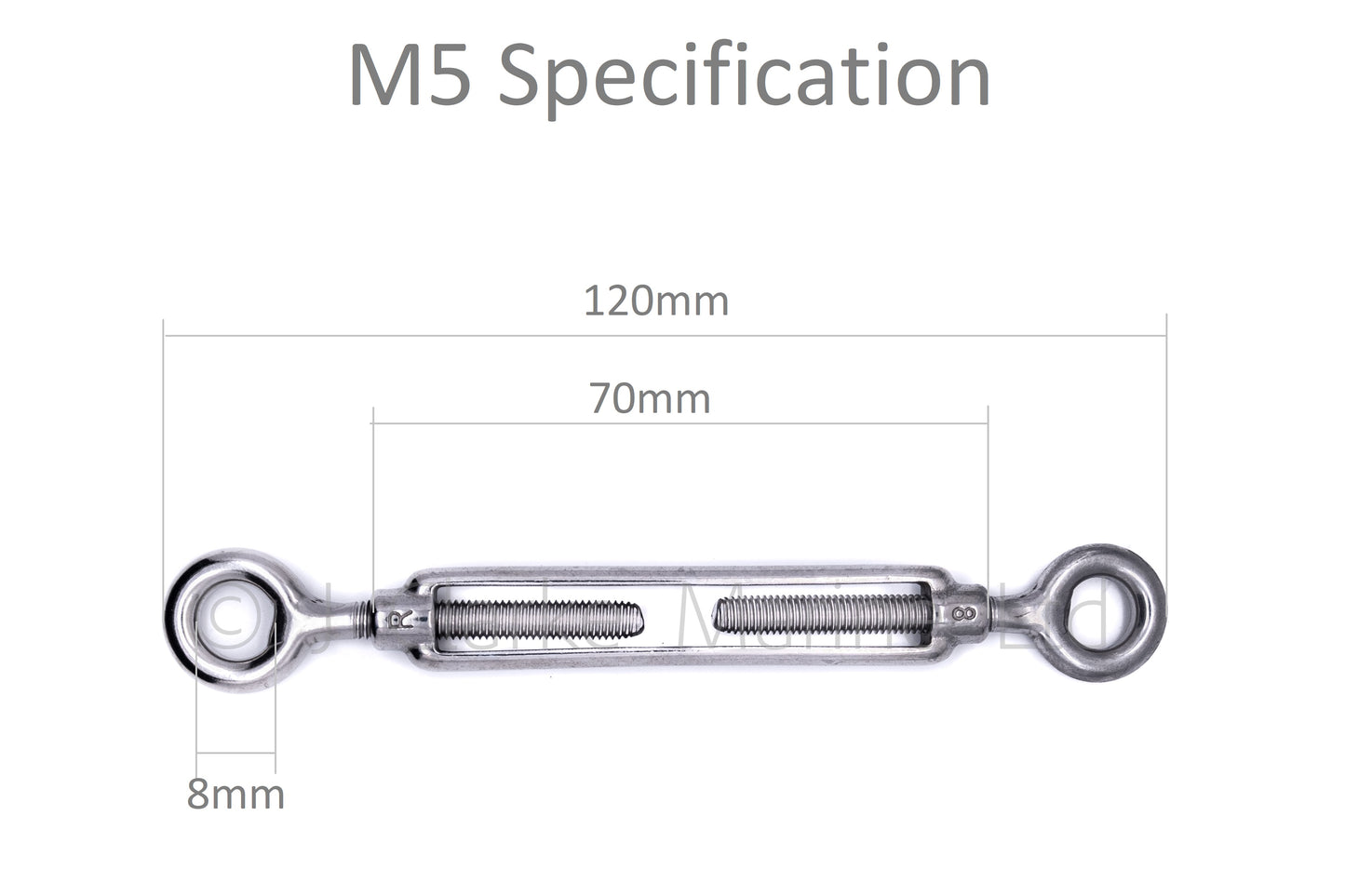

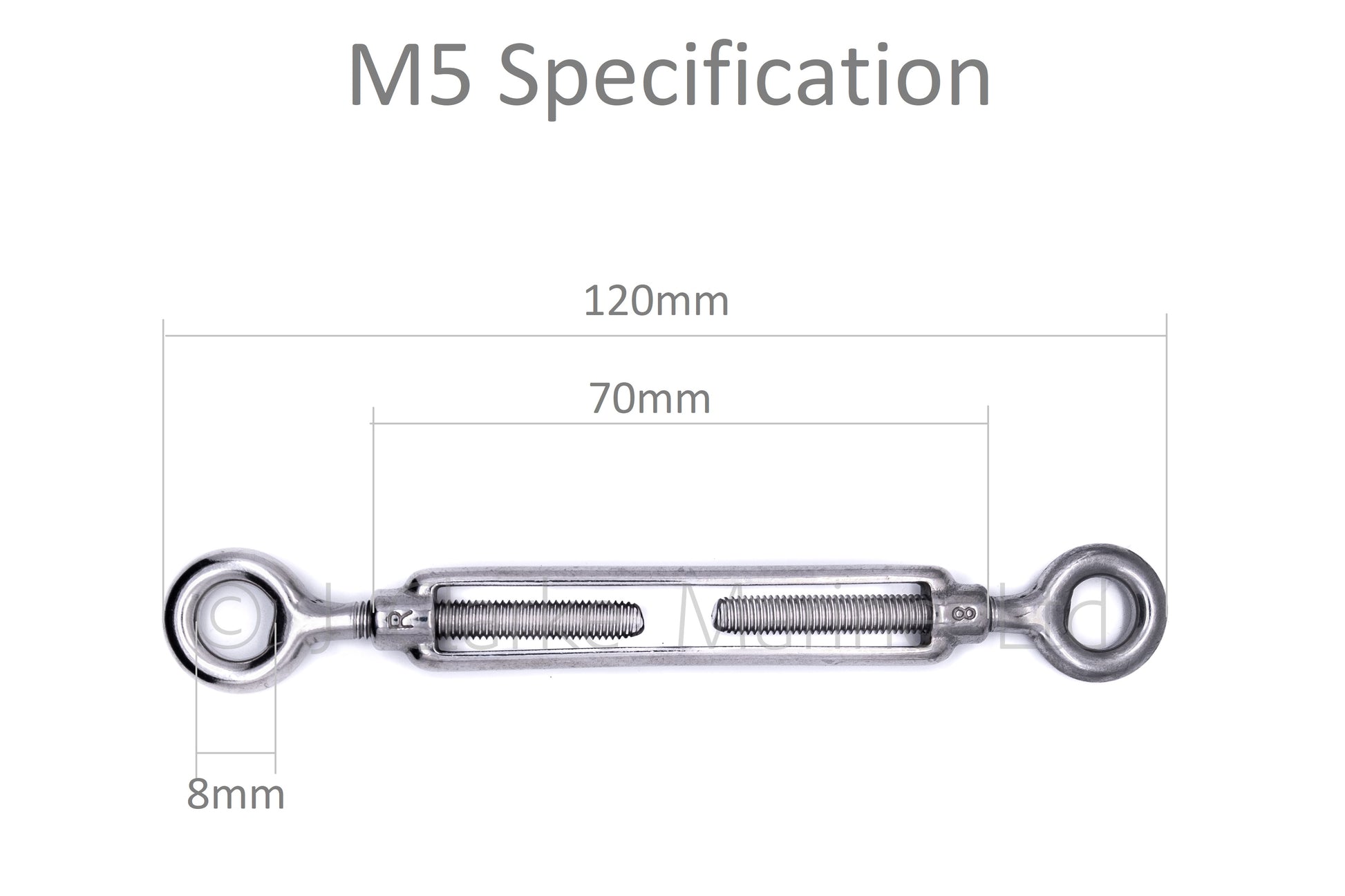

M5 eye to eye turnbuckle

• Thread is M5

• L is 70mm (body length)

• L1 is 120mm (overall length)
• D is 8mm (eye diameter)

M6 eye to eye turnbuckle

• Thread is M6

• L is 90mm (body length)

• L1 is 150mm (overall length)
• D is 10mm (eye diameter)

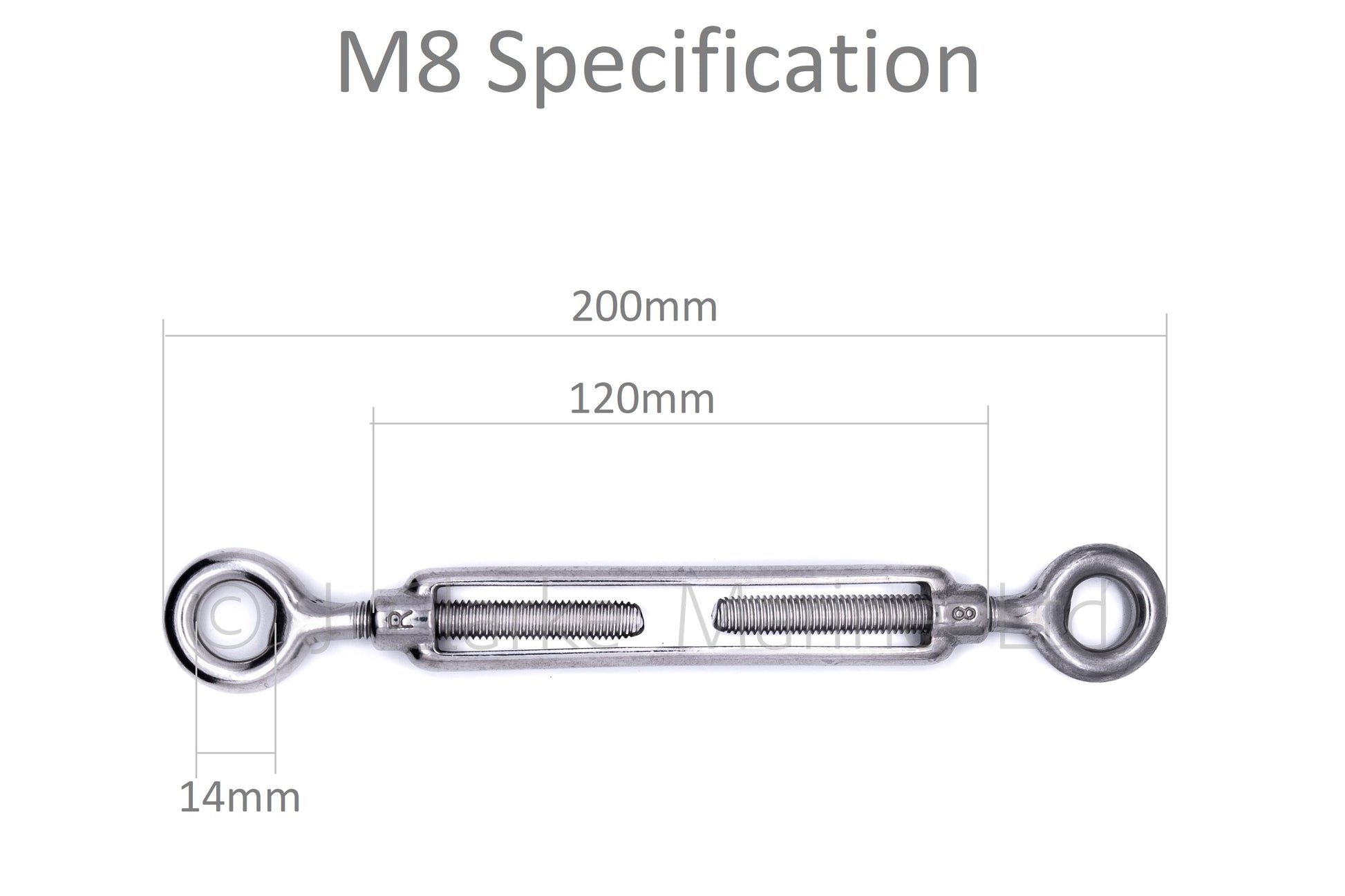

M8 eye to eye turnbuckle

• Thread is M8

• L is 120mm (body length)

• L1 is 200mm (overall length)
• D is 14mm (eye diameter)
