Description
Made by Scovill DOT fasteners.
Made of tough , non-porous SAE 304 Stainless steel
Made of tough , non-porous SAE 304 Stainless steel
Superior resistance to rust, stains, corrosion, UV light, scratches, and will not pit.
Best suited for marine, heavy washes for medical applications and other adverse environment
17/64" (6.74mm) grommet and washer
Hole size once fitted 17/64" ( 6.74mm )

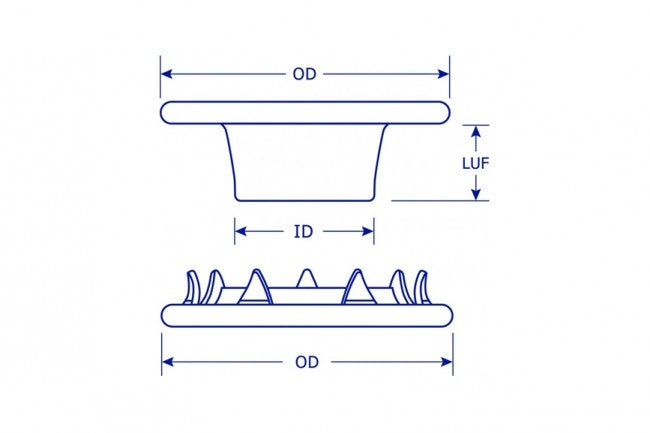

Grommet
Outside diameter 0.665" ( 16.89mm )
LUF 0.157" ( 3.98mm )
Washer
Inside diameter 0.307" ( 7.79mm )
Outside diameter 0.673" ( 17.09mm )
3/8" ( 9.5mm )grommet and washer
Hole size once fitted 3/8" ( 9.5mm )
Grommet
Outside diameter 0.866" ( 22mm )
LUF 0.212" ( 5.38mm )
Washer
Inside diameter 0.421" ( 10.69mm )
Outside diameter 0.866" ( 22mm )
1/2" (12.7mm) grommet and washer
Hole size once fitted 1/2" ( 12.7mm )
Grommet
Outside diameter 1.063" ( 27mm )
LUF 0.260" ( 6.6mm )
Washer
Inside diameter 0.551" ( 14mm )
Outside diameter 1.051" ( 26.7mm )
5/8" (15.88mm) grommet and washer
Hole size once fitted 5/8" ( 15.88mm )
Grommet
Outside diameter 1.240" ( 31.5mm )
LUF 0.319" ( 8.10mm )
Washer
Inside diameter 0.693" ( 17.6mm )
Outside diameter 1.248" ( 31.7mm )
