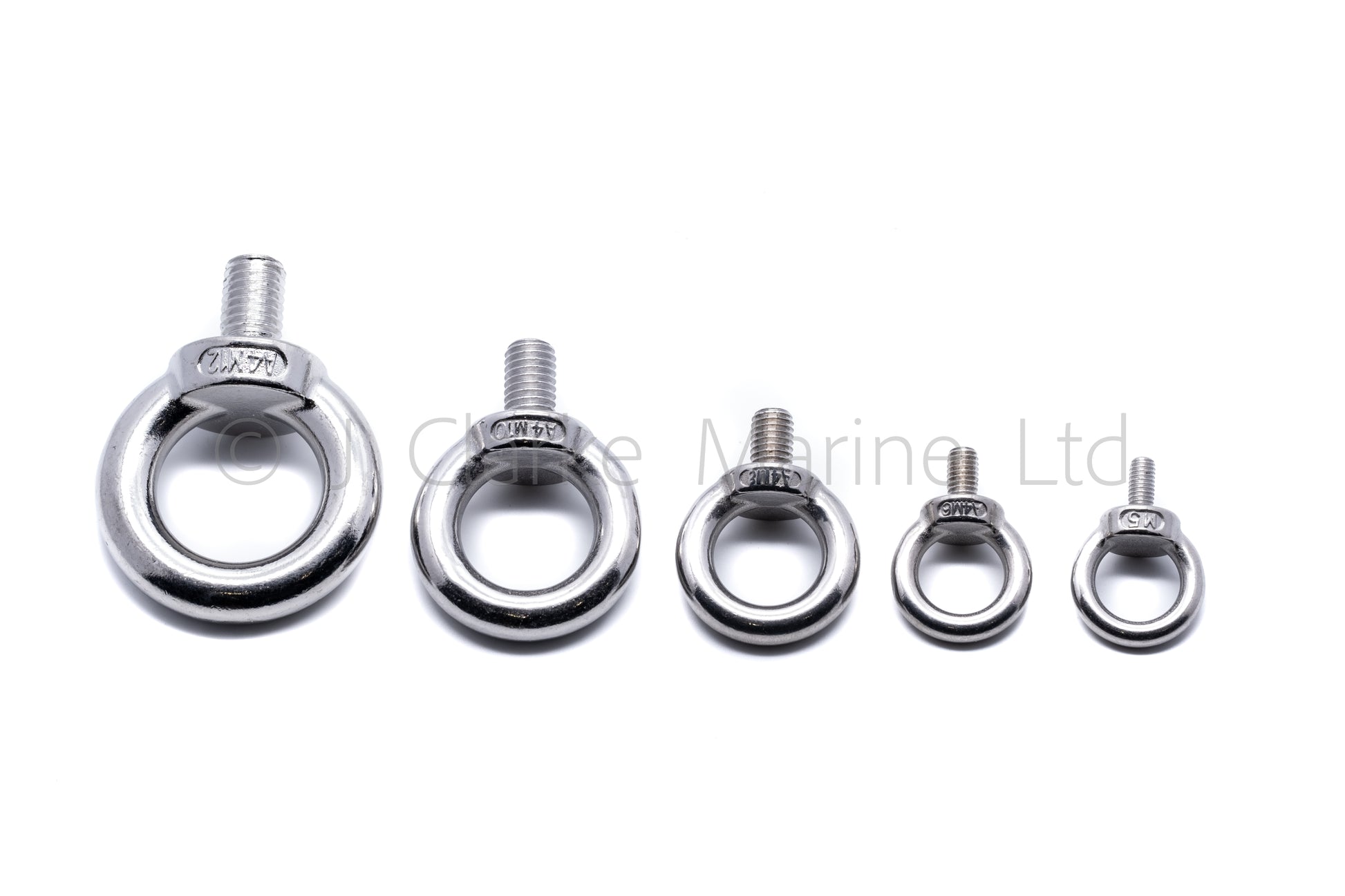

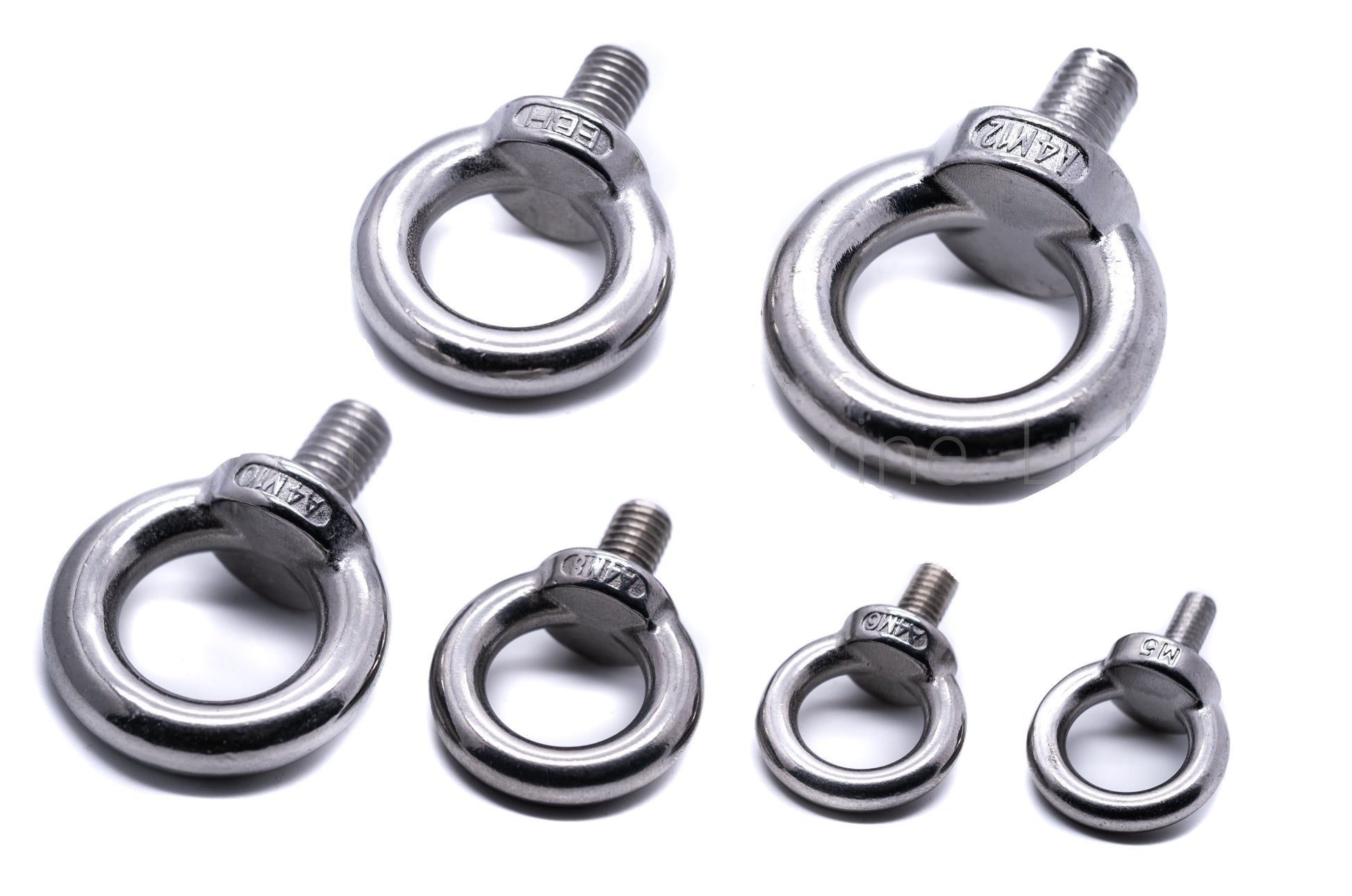

Eye Bolts with short thread M5 M6 M8 M10 M12 (316 A4 stainless steel)

M5
Outside Diameter is 25mm
Thread length is 10mm
Inside Diameter is 15mm
Overall height is 36mm
Marine grade
A4 316 Stainless Steel Polished

M6
Outside Diameter is 28mm
Thread length is 12mm
Inside Diameter is 15mm
Overall height is 38mm
Breaking load 1100kg
Safe working load 220kg
Marine grade
A4 316 Stainless Steel Polished

M8
Outside Diameter is 34mm
Thread length is 13mm
Inside Diameter is 20mm
Overall height is 45mm
Breaking load 1800kg
Safe working load 360kg
Marine grade A4 316 Stainless Steel Polished

M10
Outside Diameter is 43mm
Thread length is 17mm
Inside Diameter is 25mm
Overall height is 51mm
Breaking load 2600kg
Safe working load 520kg
Marine grade
A4 316 Stainless Steel Polished

M12
Outside Diameter is 51mm
Thread length is 20mm
Inside Diameter is 30mm
Overall height is 69mm
Breaking load 3500kg
Safe working load 700kg
Marine grade
A4 316 Stainless Steel Polished
