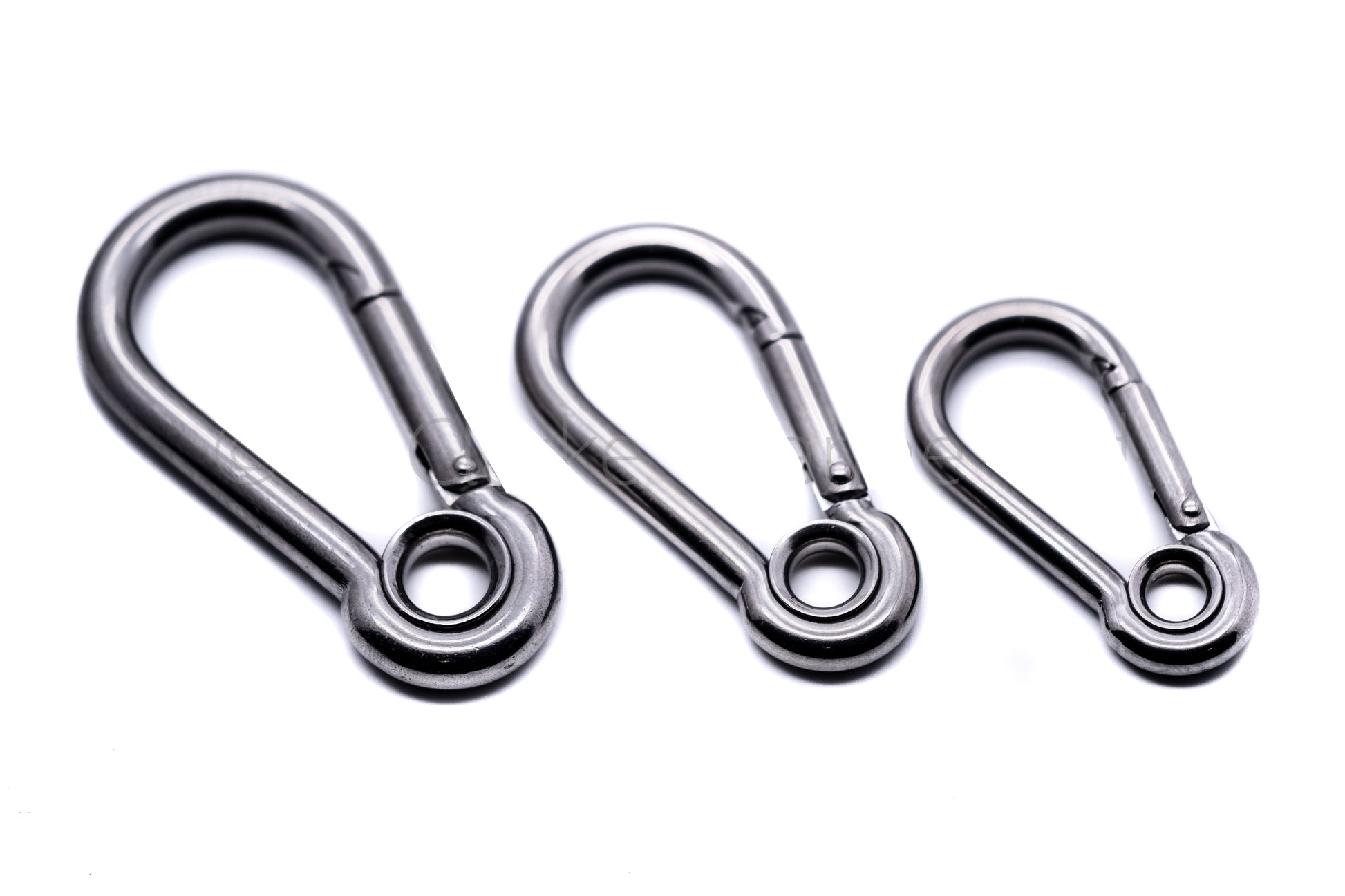

Carbine carabiner snap hook with eyelet A4 316 stainless steel

Manufactured from A4 316 marine grade stainless steel, this carabiner snap hook features a captive eyelet at the base for attaching rope, wire, cord or other fittings.

The eyelet helps keep the attached line or fitting securely positioned at one end of the carabiner, while the spring-loaded gate provides quick and easy connection. An excellent choice for marine, boating, outdoor and general-purpose applications.

Key Features

• A4 316 marine grade stainless steel

• Integrated captive eyelet

• Spring-loaded snap hook gate

• Polished stainless steel finish

• Excellent corrosion resistance

• Ideal for marine and outdoor environments

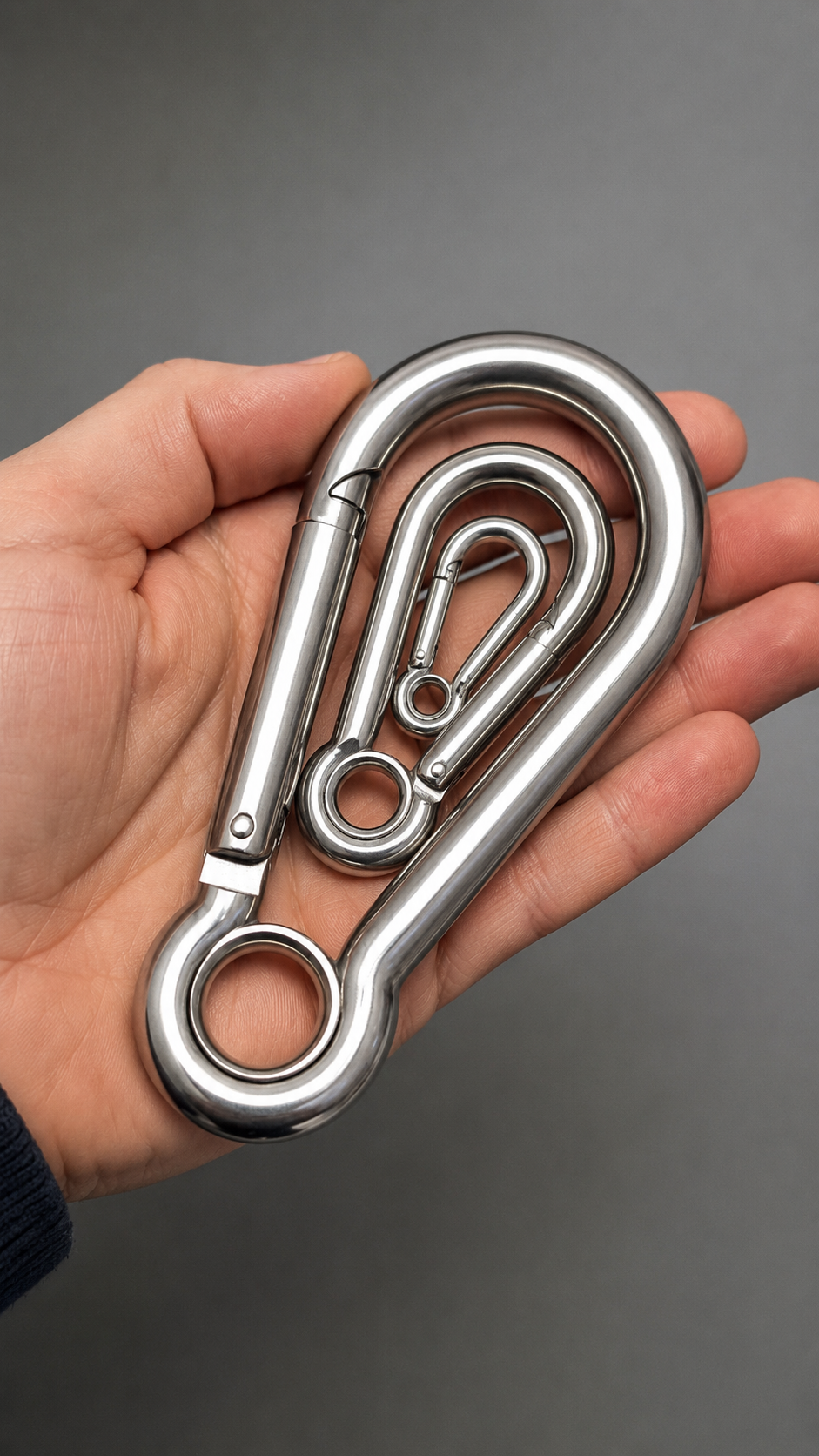

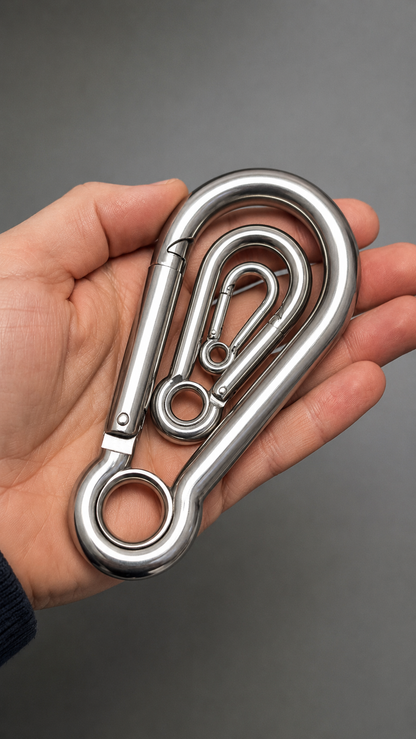

• Available in six sizes from 4mm to 10mm

• Useful with rope, cord, wire and other fittings

• Supplied by J Clarke Marine – a husband and wife UK family business

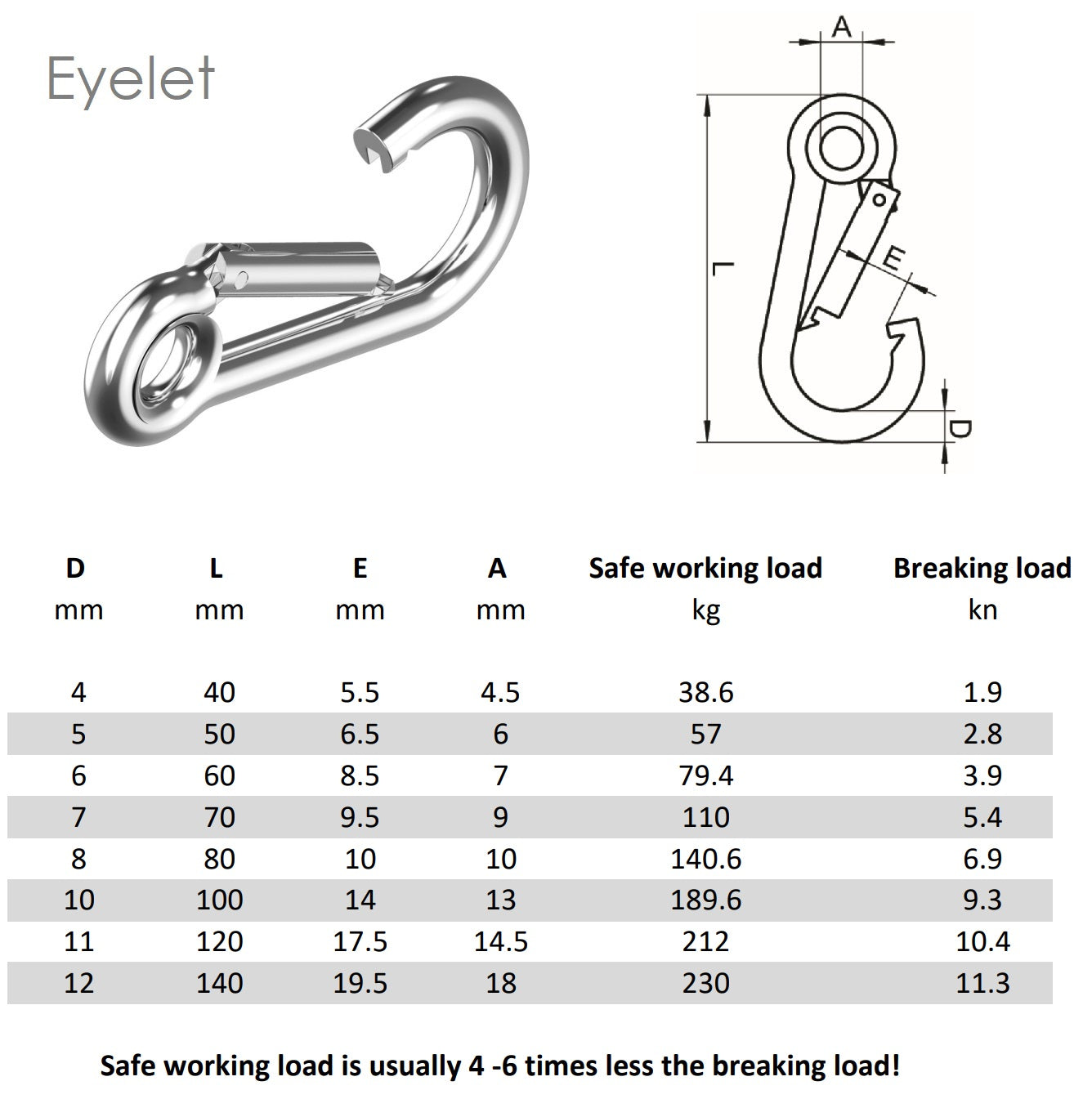

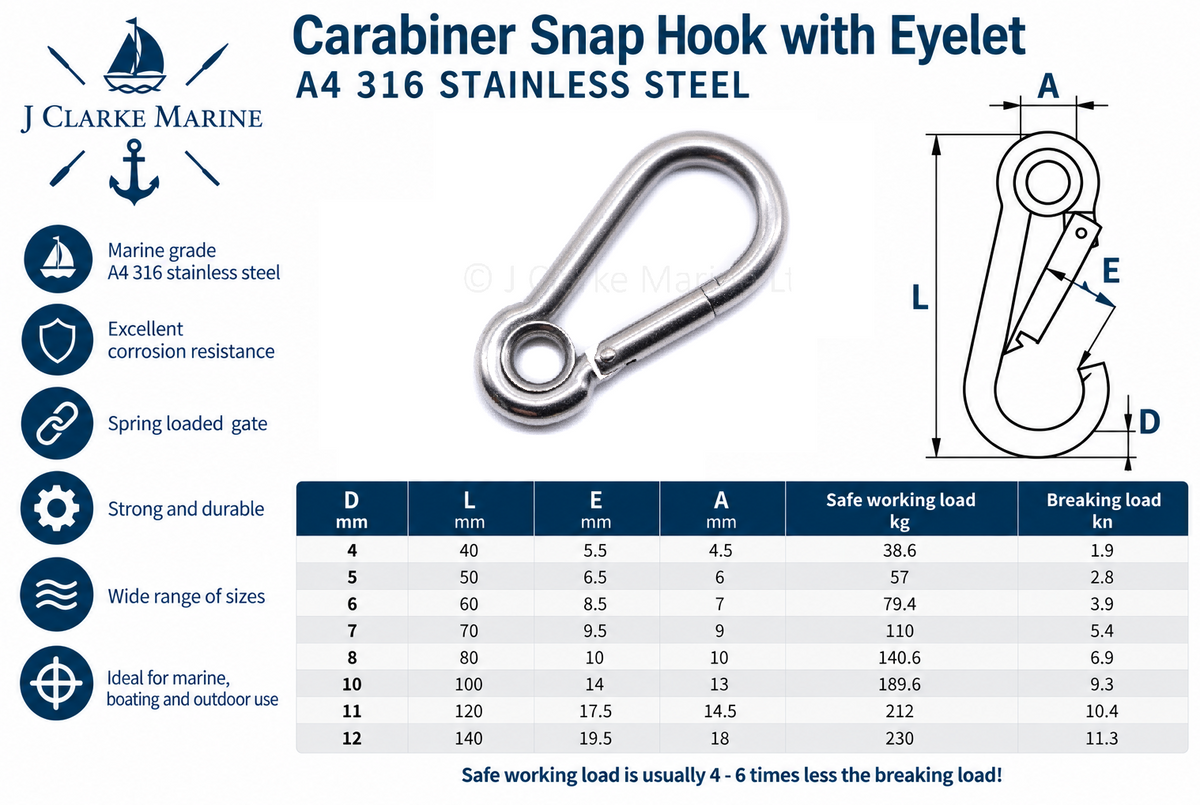

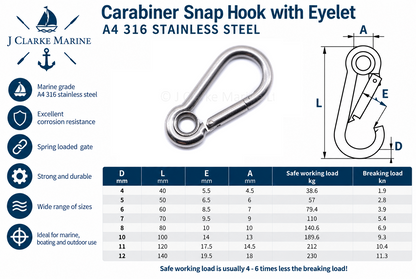

Sizes & Specifications

4mm × 40mm

• Hook thickness: 4mm

• Overall length: 40mm

• Eyelet diameter: 4.5mm

• Opening gap: 5.5mm

• Breaking load: 1.9kN

5mm × 50mm

• Hook thickness: 5mm

• Overall length: 50mm

• Eyelet diameter: 6mm

• Opening gap: 6.5mm

• Breaking load: 2.8kN

6mm × 60mm

• Hook thickness: 6mm

• Overall length: 60mm

• Eyelet diameter: 7mm

• Opening gap: 8.5mm

• Breaking load: 3.9kN

7mm × 70mm

• Hook thickness: 7mm

• Overall length: 70mm

• Eyelet diameter: 9.5mm

• Opening gap: 9mm

• Breaking load: 5.4kN

8mm × 80mm

• Hook thickness: 8mm

• Overall length: 80mm

• Eyelet diameter: 10mm

• Opening gap: 10mm

• Breaking load: 6.9kN

10mm × 100mm

• Hook thickness: 10mm

• Overall length: 100mm

• Eyelet diameter: 13mm

• Opening gap: 14mm

• Breaking load: 9.3kN

Suitable For

Ideal for boats, yachts, sailing, marine equipment, rope and cord assemblies, camping, securing equipment, garden projects and general outdoor use.

The captive eyelet is particularly useful where a rope, cord or fitting needs to remain attached to the carabiner while allowing the main spring hook to be quickly connected and disconnected.

Important Safety Information

Breaking load figures are supplied as a guide to the strength of the fitting. These carabiners are not certified for climbing, personal fall protection or life-support applications.
