• Shackle - Bow shackle stainless steel

  • £3.07

    (HUGE price breaks in quantity box + Free UK delivery)
  •
  • Share this product

Description

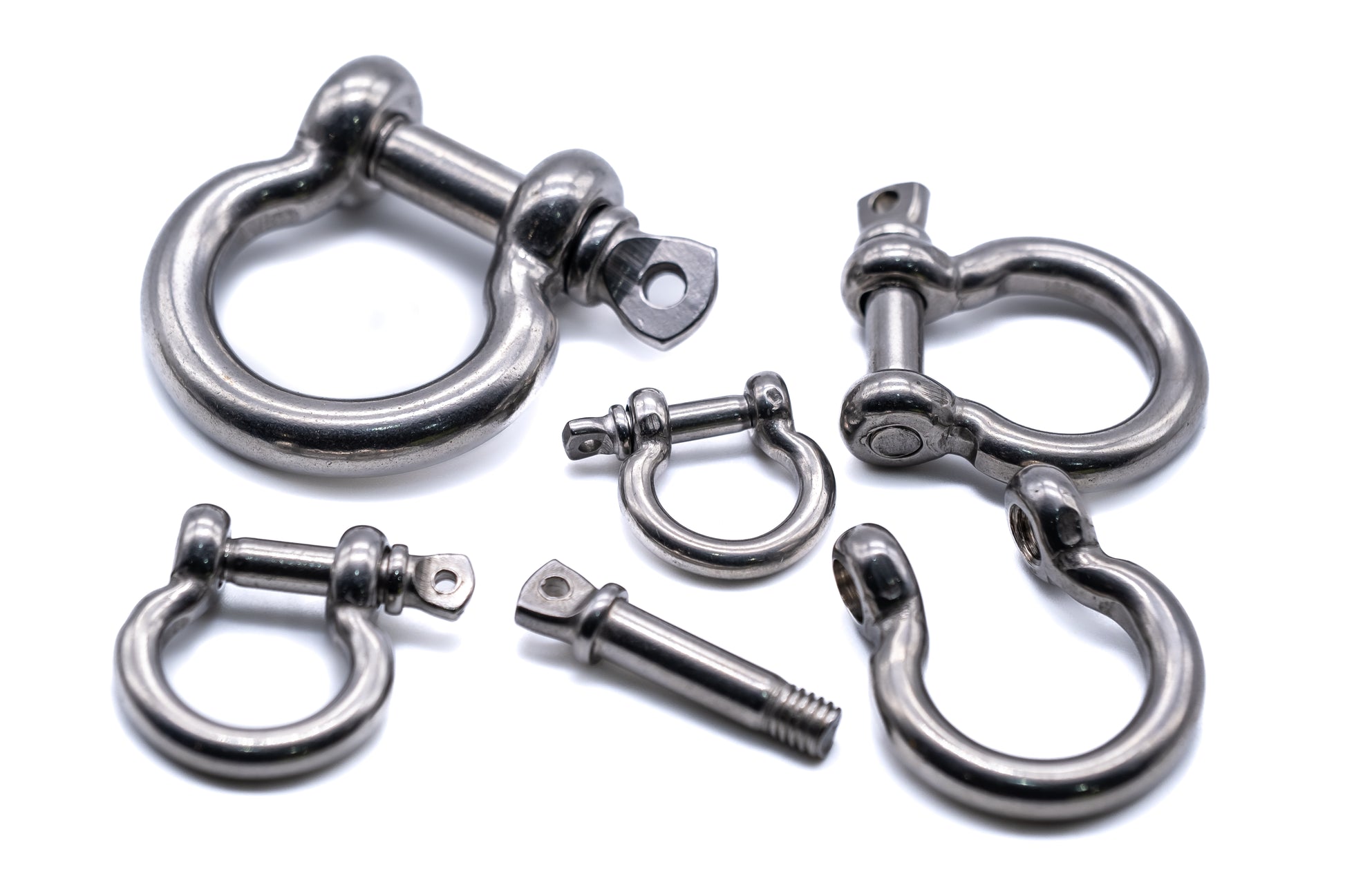

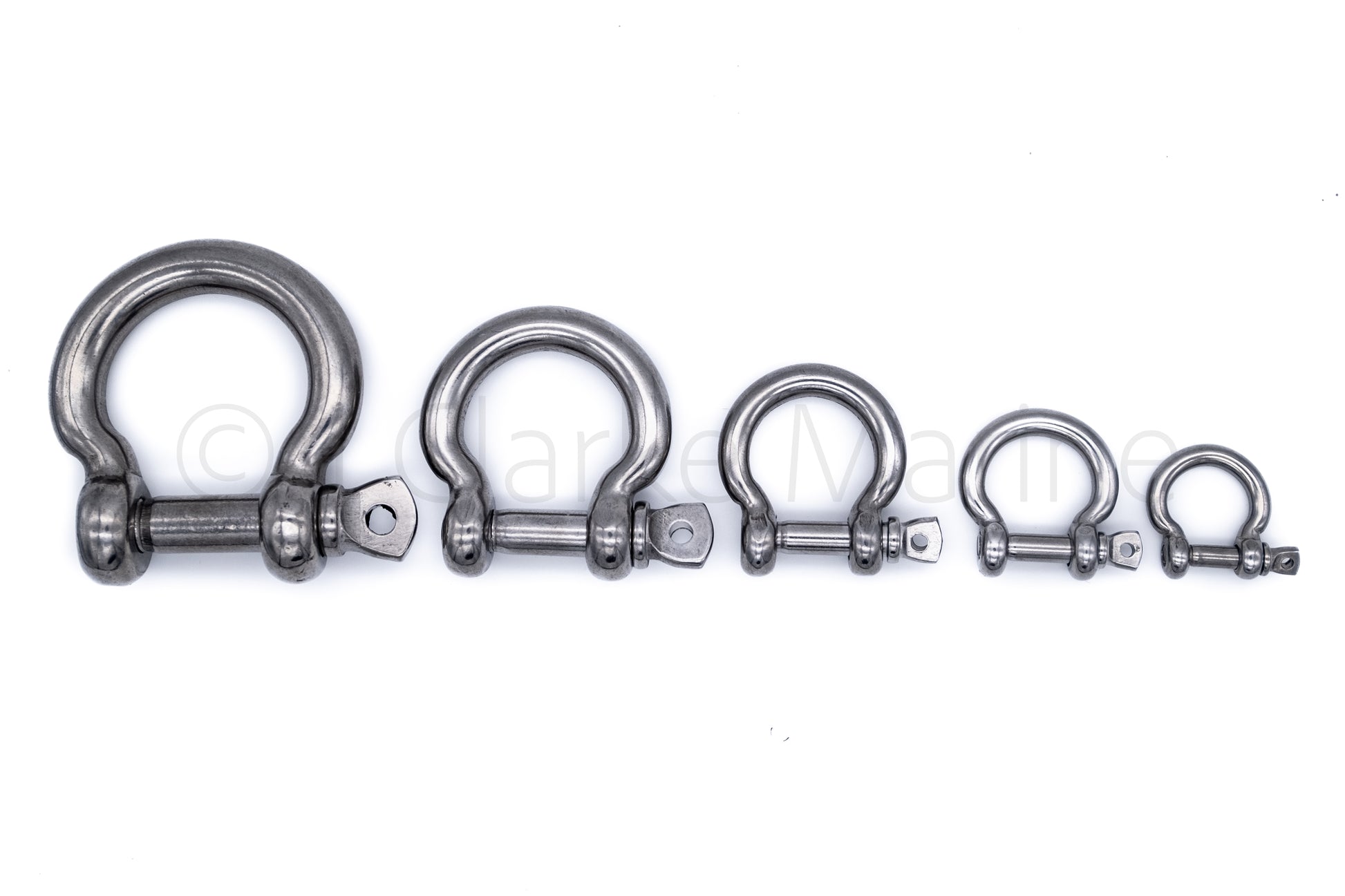

Marine grade stainless steel bow shackle 316 A4 M4, M5, M6, M8, M10
All shackles are 316 A4 stainless steel with a polished finish
See photos or next tab for full diagram specification

4mm
Marine grade stainless steel 316 A4
Thickness of pin and shackle 4mm
Inside length of shackle 14mm
Inside width of shackle 14mm
Inside width of pin 8mm

5mm
Marine grade stainless steel 316 A4
Thickness of pin and shackle 5mm
Inside length of shackle 17mm
Inside width of shackle 17mm
Inside width of pin 10mm

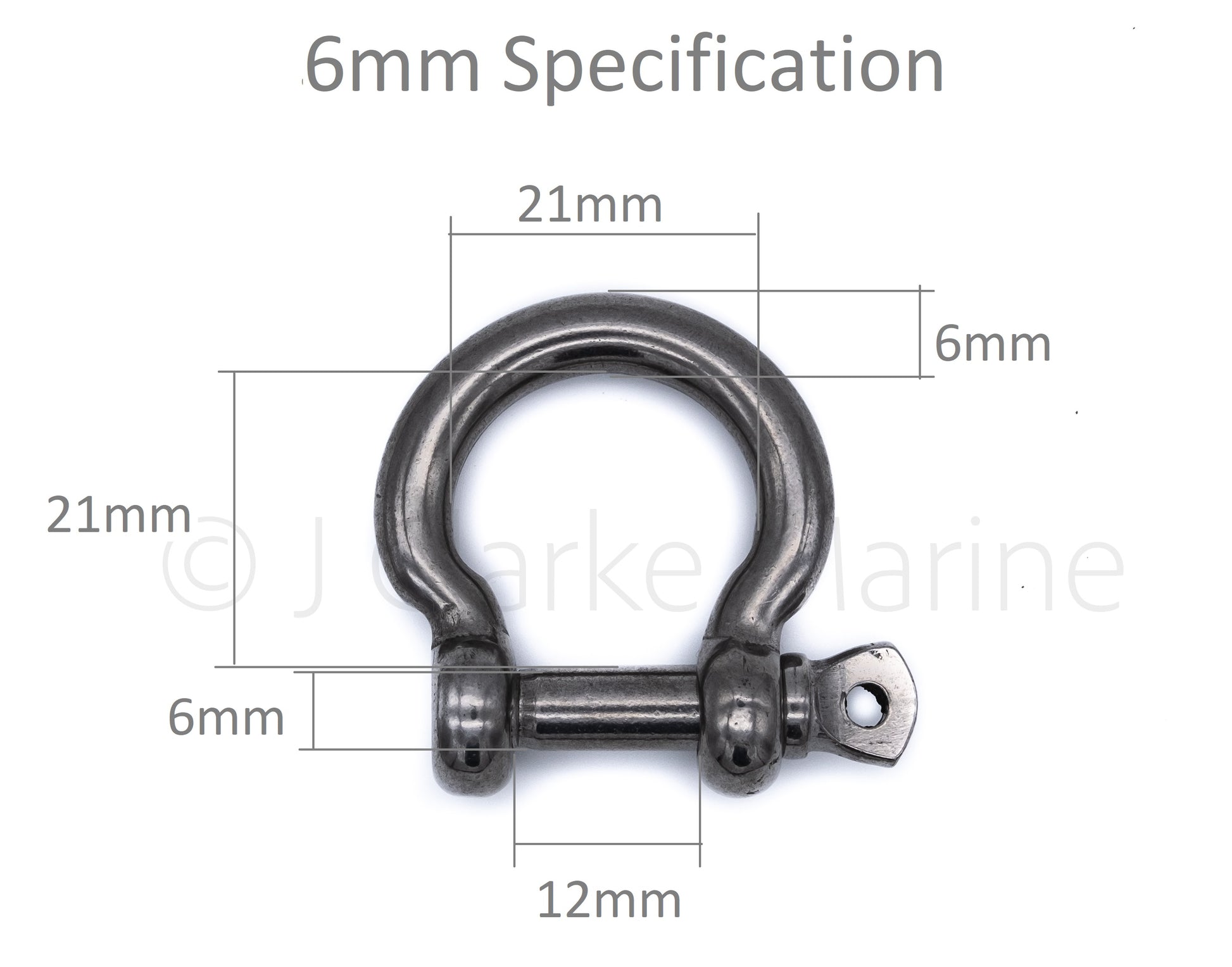

6mm
Marine grade stainless steel 316 A4
Thickness of pin and shackle 6mm
Inside length of shackle 21mm
Inside width of shackle 21mm
Inside width of pin 12mm

8mm
Marine grade stainless steel 316 A4
Thickness of pin and shackle 8mm
Inside length of shackle 28mm
Inside width of shackle 28mm
Inside width of pin 16mm

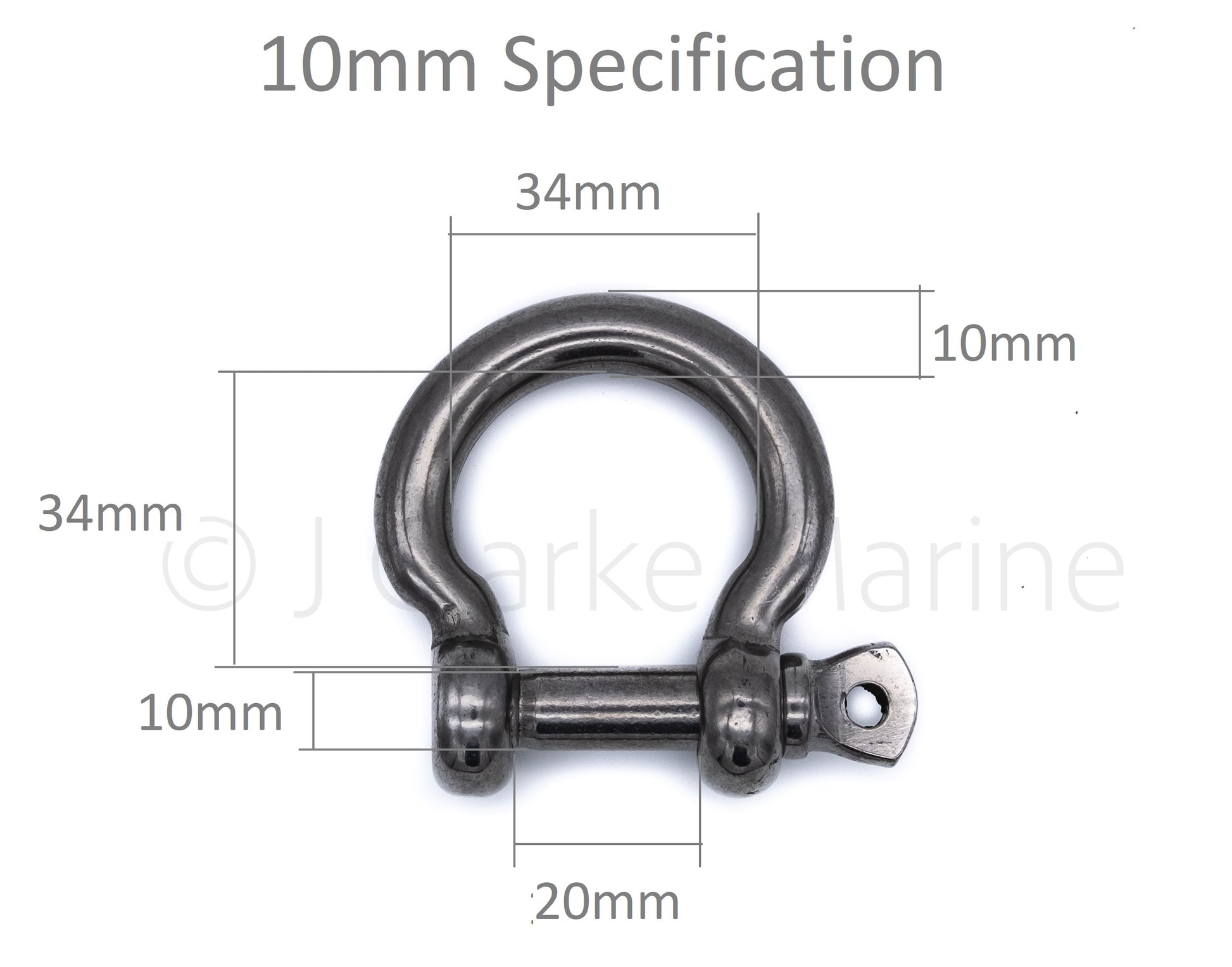

10mm
Marine grade stainless steel 316 A4
Thickness of pin and shackle 10mm
Inside length of shackle 34mm
Inside width of shackle 34mm
Inside width of pin 20mm
