Our handrail end fittings are perfect for creating a grab rail to whatever length you require.
They do not come with tubing.
They are to suit 22mm tubing that is inserted into the rail end then held in place by a grommet or you could also push the tubing as far as it goes and have it held that way.
To suit 22mm or 7/7" tubing
They are 125mm long overall
Tubing will require a slight bend as when they are sitting flush they are at around a 5 degree angle upwards.
There are two 4.5mm countersunk holes for fitting the fasteners of your choice.
What do you get

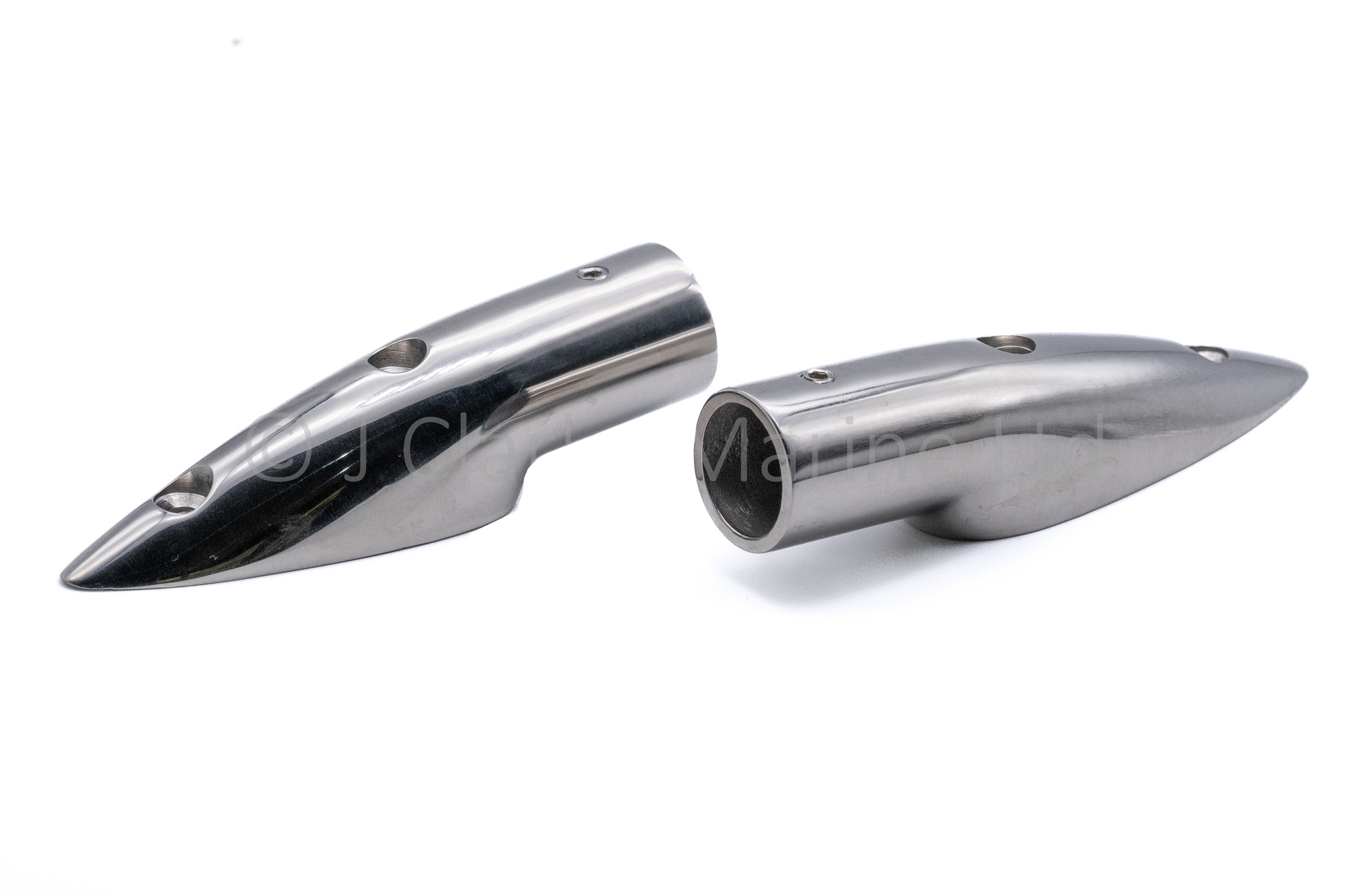

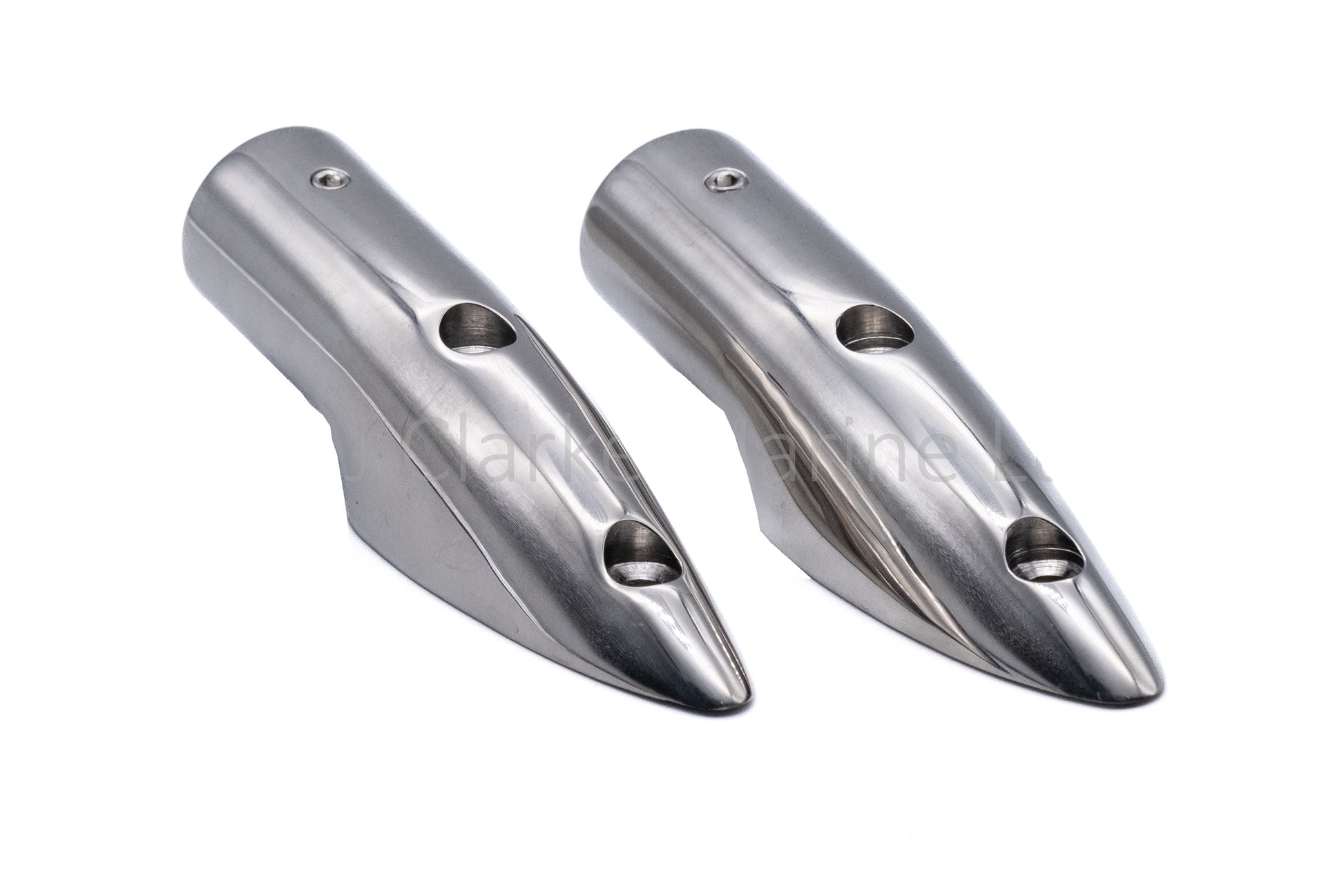

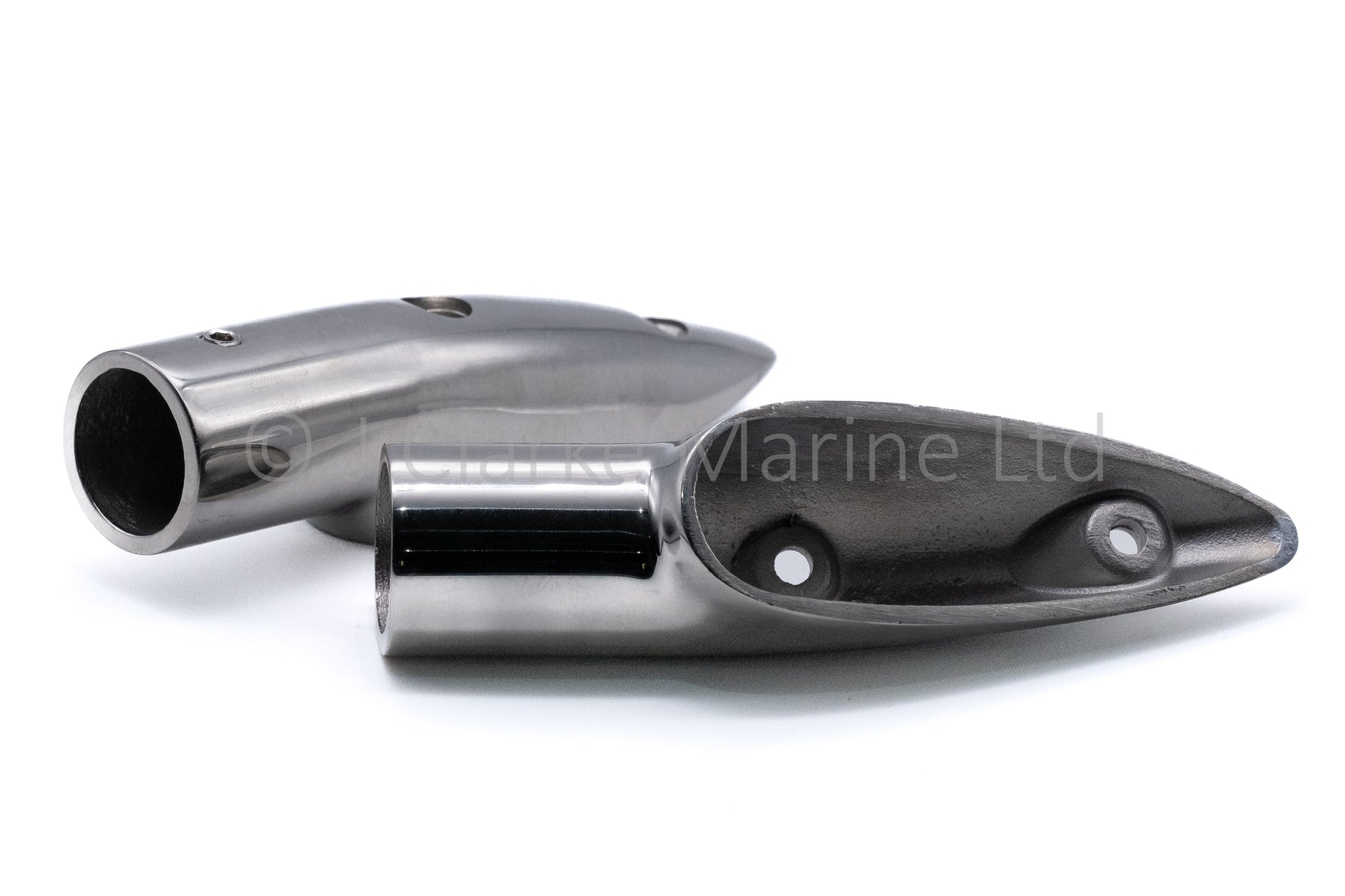

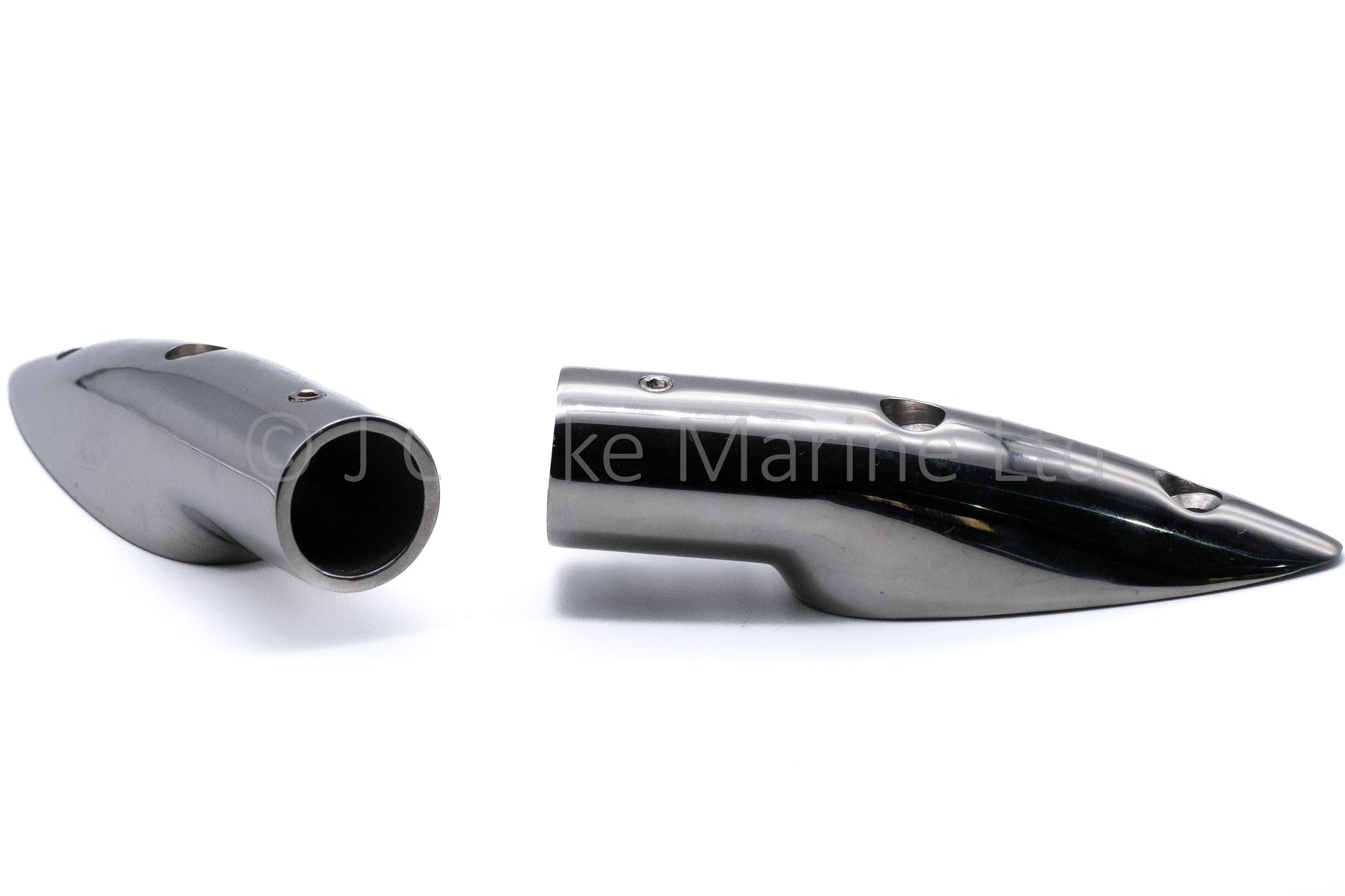

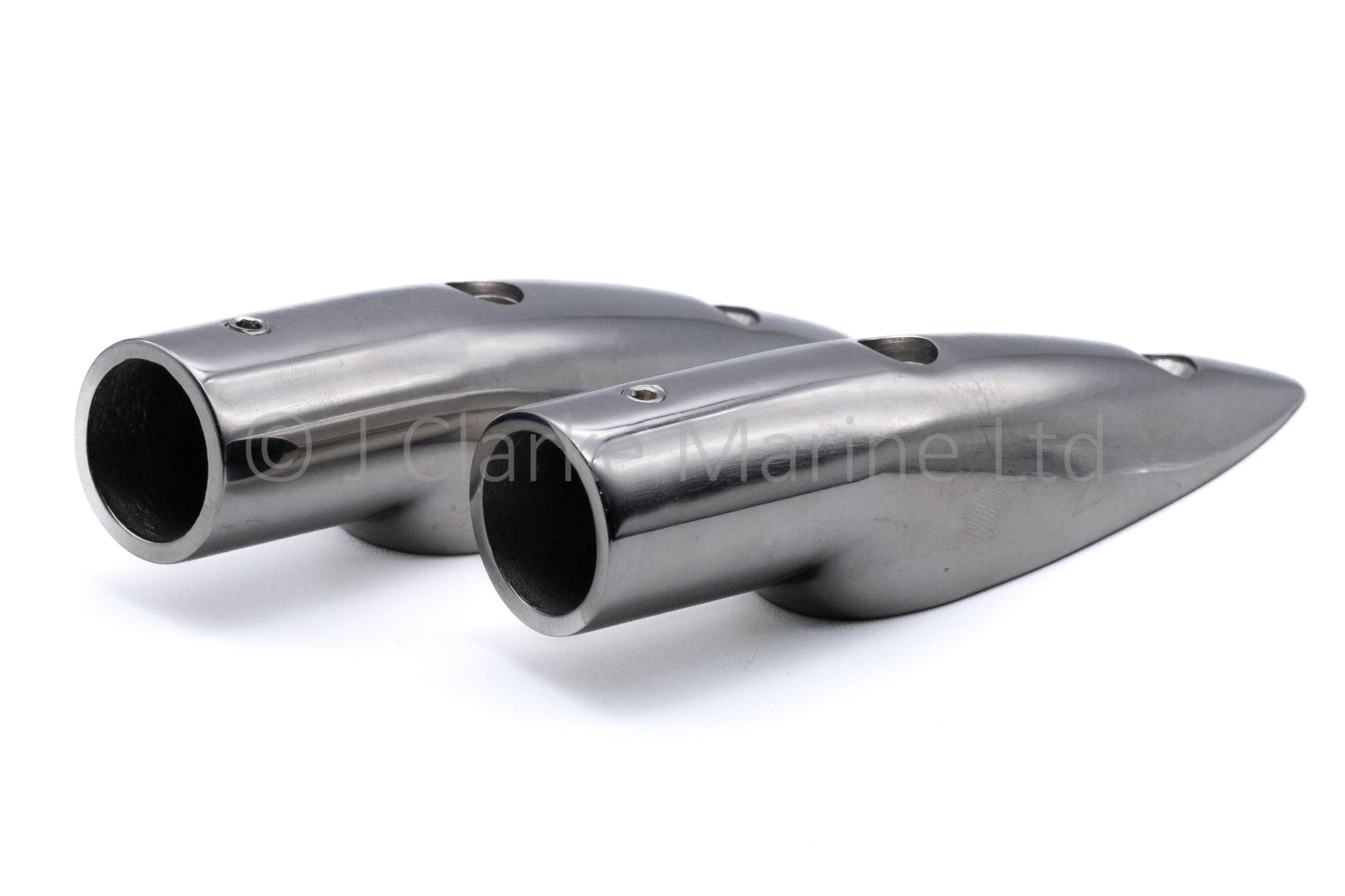

The picture shows two parts in all photos to show different angles.
A pack of 1 get your 1 piece
A pack of 2 gets you 2 pieces
A pack of 4 gets you 4 pieces and so on.........
Made from 316 A4 marine grade stainless steel.
