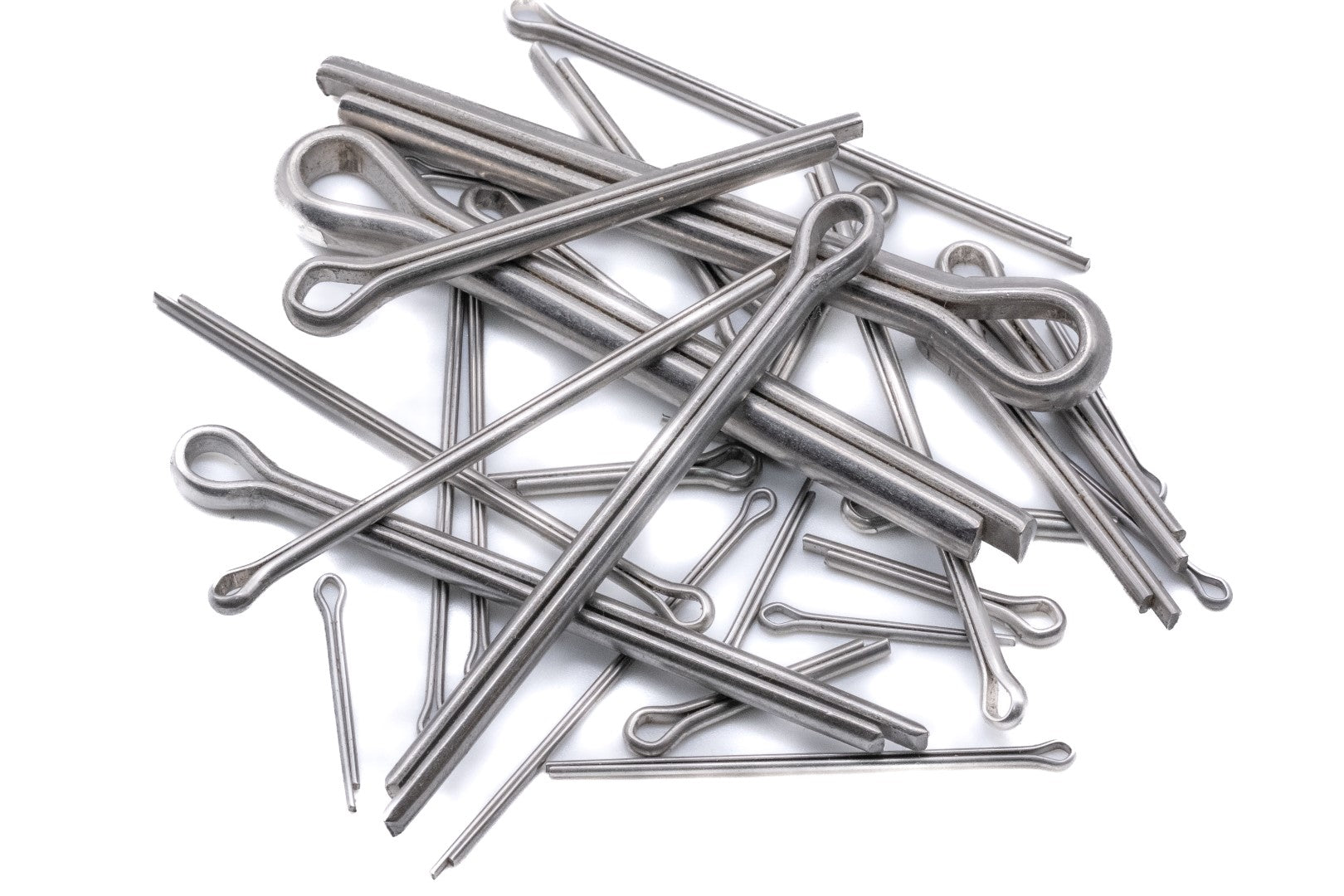

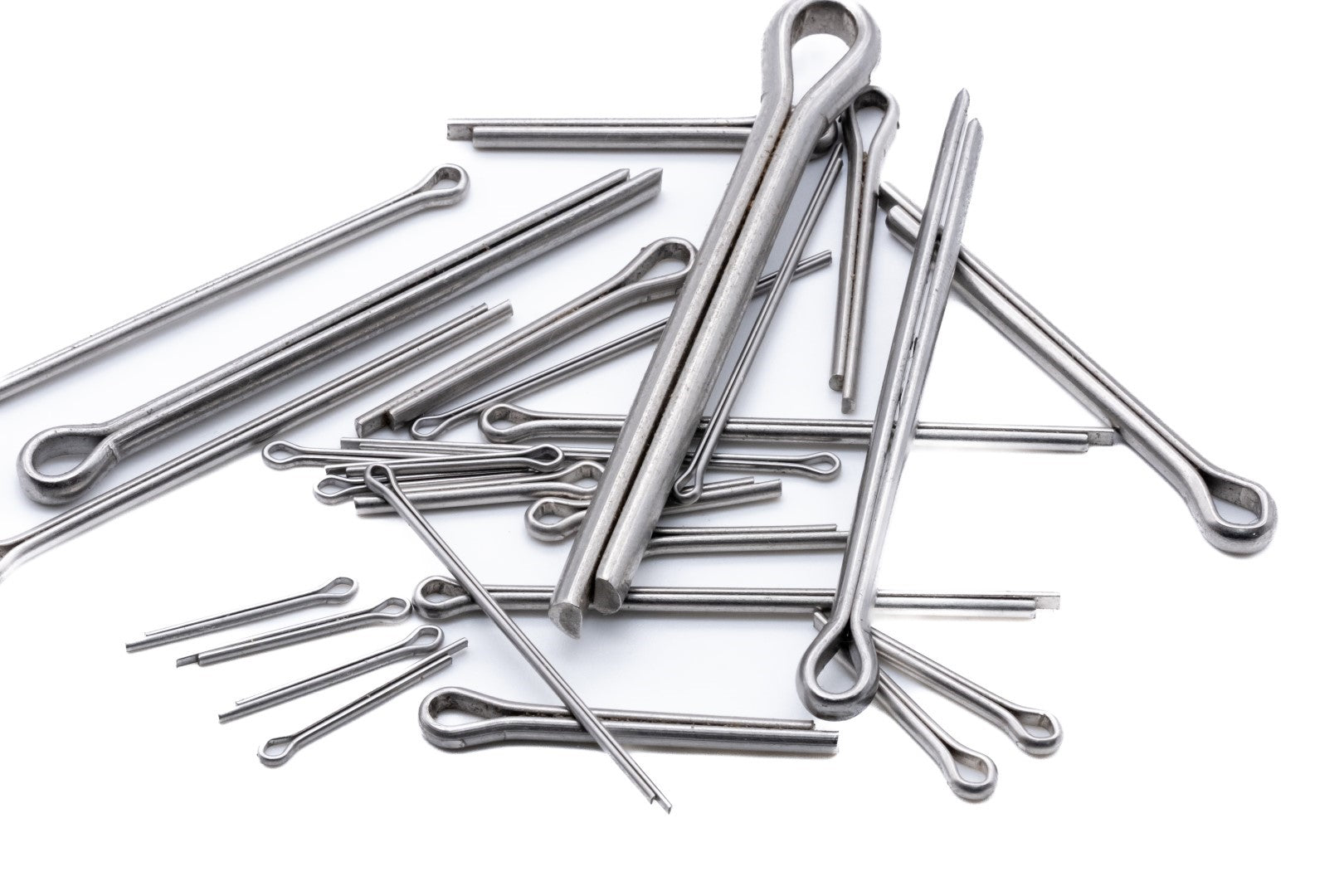

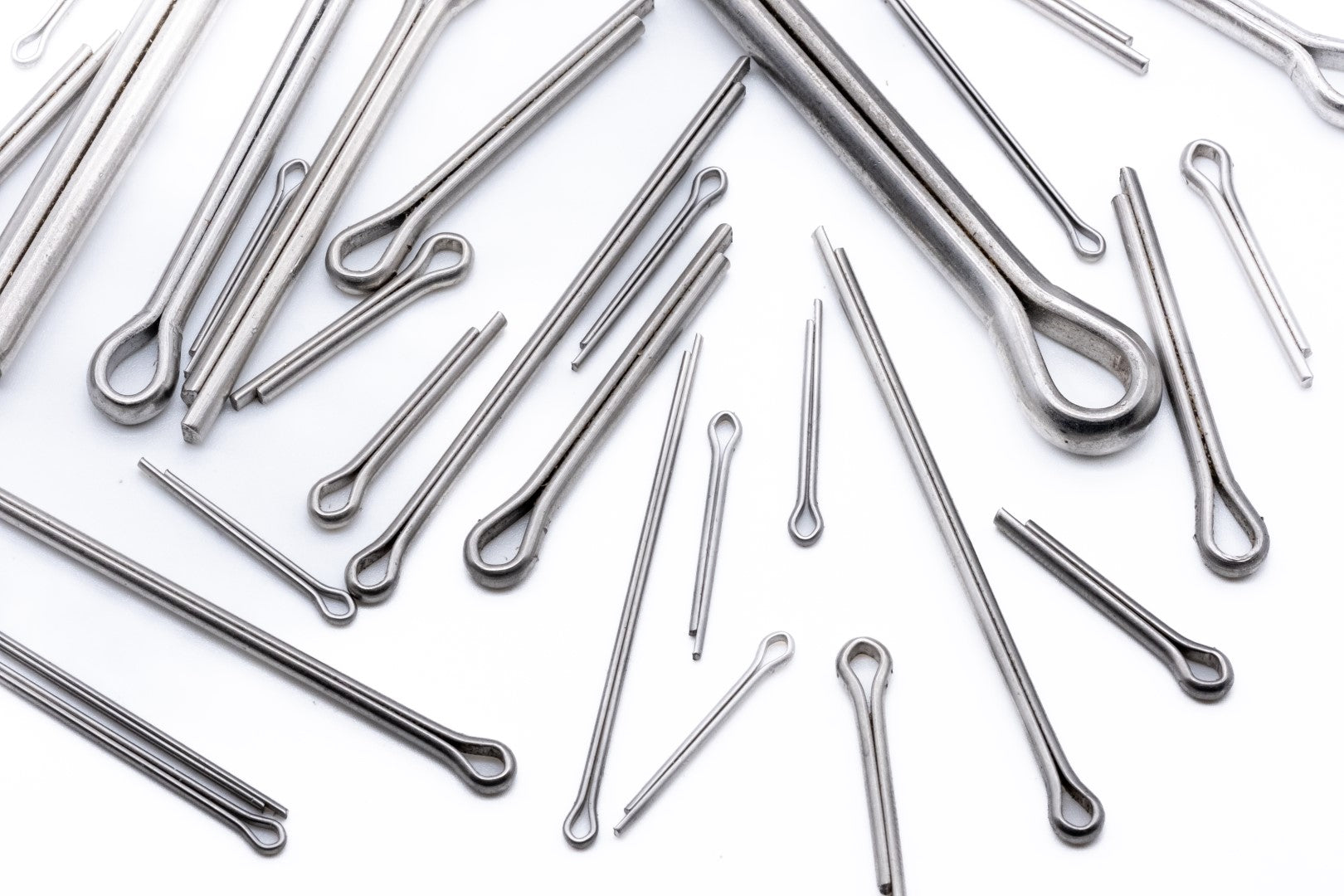

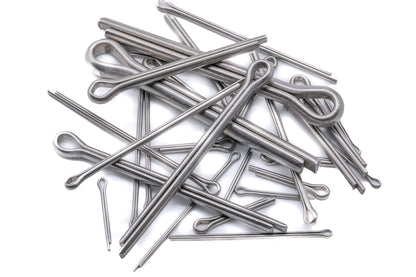

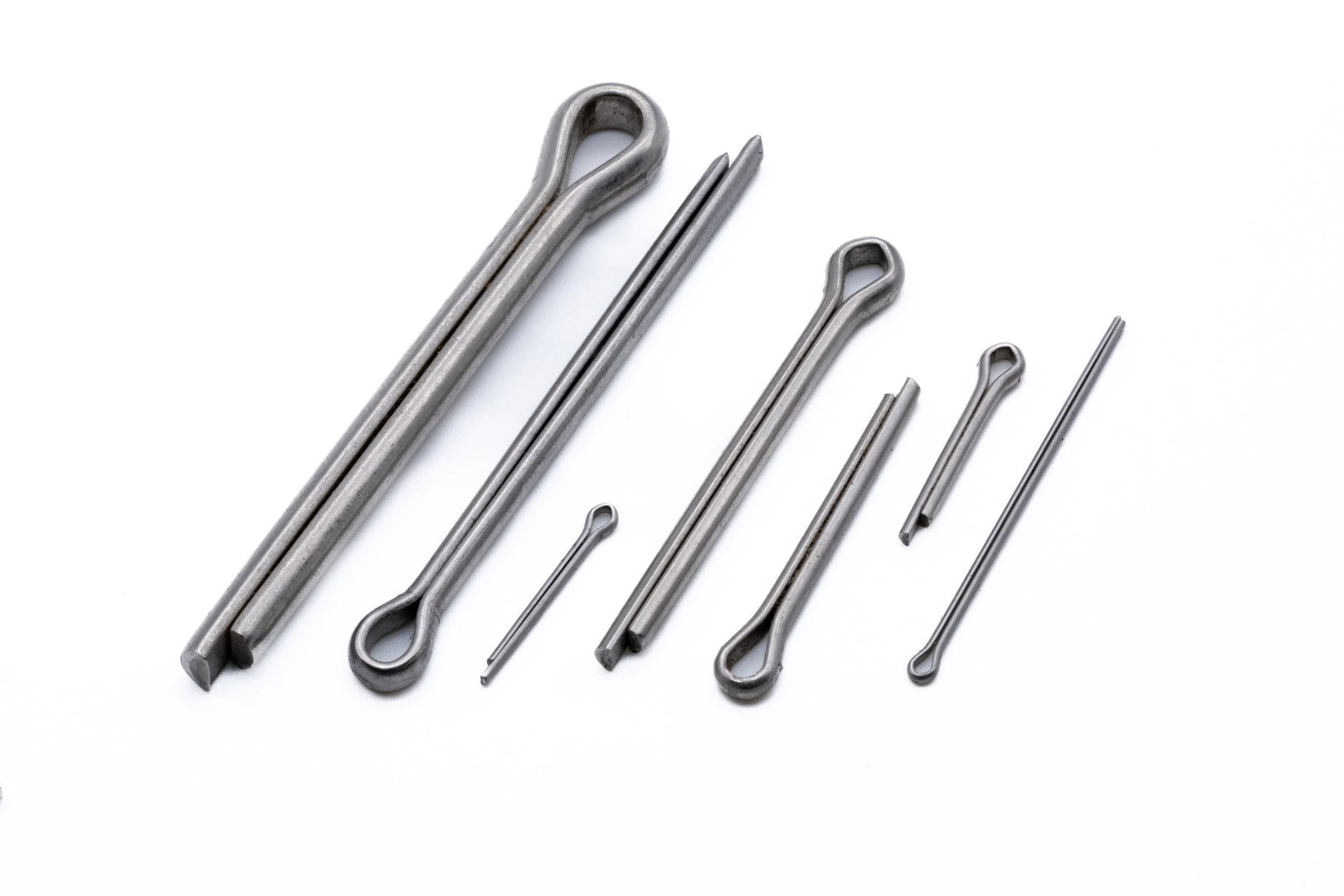

Split pins / Cotter pins marine grade stainless steel A4 316

£4.10 GBP

Sale Sold out

Bulk prices (inc. VAT & UK delivery)

Pack	Each
Loading...

More Information

Marine grade stainless steel Split pins / cotter pins 316 A4

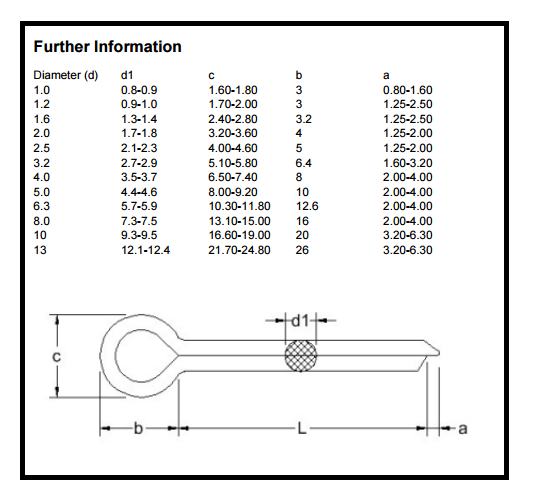

Please see second photo for specification sheet

A - (Distance between tip of the longer pin than the shorter pin)
B - (Distance between the top of the round head to the start of the pins)
C - (Outside diameter of round head)
D - Diameter of hole for pins
D1 - (Actual Diameter of pins when closed against each other)
L - (Length of pins only)

So 3.2mm x 40mm would be dmm x Lmm
3.2mm Diameter of hole for pins and 40mm length of pins only without round head

How to size
1. Measure the hole your split pin is for. ie: a 4mm hole
2. So just purchase a 4mm split pin. It will be slightly smaller and fit perfect.
3. So the first number of the split pin is actually the size of the hole it is for.
